NEX-DR

Single Dot

R 3,500.00

placeholder

NEX-DR – MOS Footprint, IPX7, CR1620 Battery, 6061 Aluminum

RD118D

Extra-large 21×25 mm sight window — oversized rectangular window delivers a wider field of view for faster target acquisition and better situational awareness in close-quarters and dynamic shooting.

Aircraft-grade 6061 aluminum housing — forged, high-strength construction provides military-level durability while remaining lightweight.

Built to survive heavy recoil (tested to 1500G) — engineered to withstand the shock of calibers from 9mm and 12-gauge up to .338 Lapua Magnum; proven stable after thousands of rounds.

Advanced multi-layer anti-reflective coatings — precision ground glass with multi coatings for high light transmission, crisp clarity, and resistance to scratches and glare in bright conditions.

Rugged weatherproofing & convenient power — MOS footprint for wide compatibility, IPX7 waterproof rating, and long-life CR1620 battery for reliable field performance.

R 3,500.00

NEX-DR – MOS Footprint, IPX7, CR1620 Battery, 6061 Aluminum

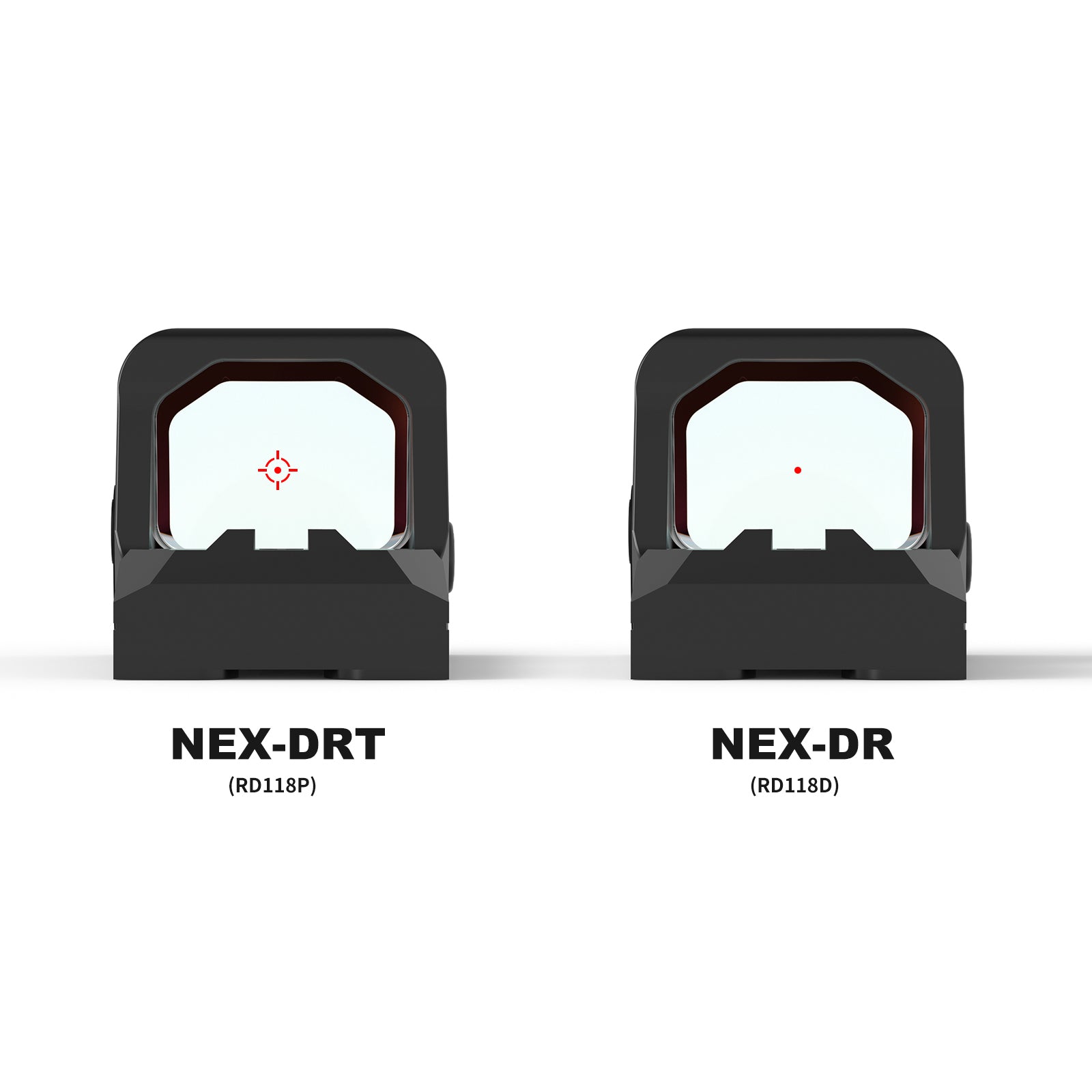

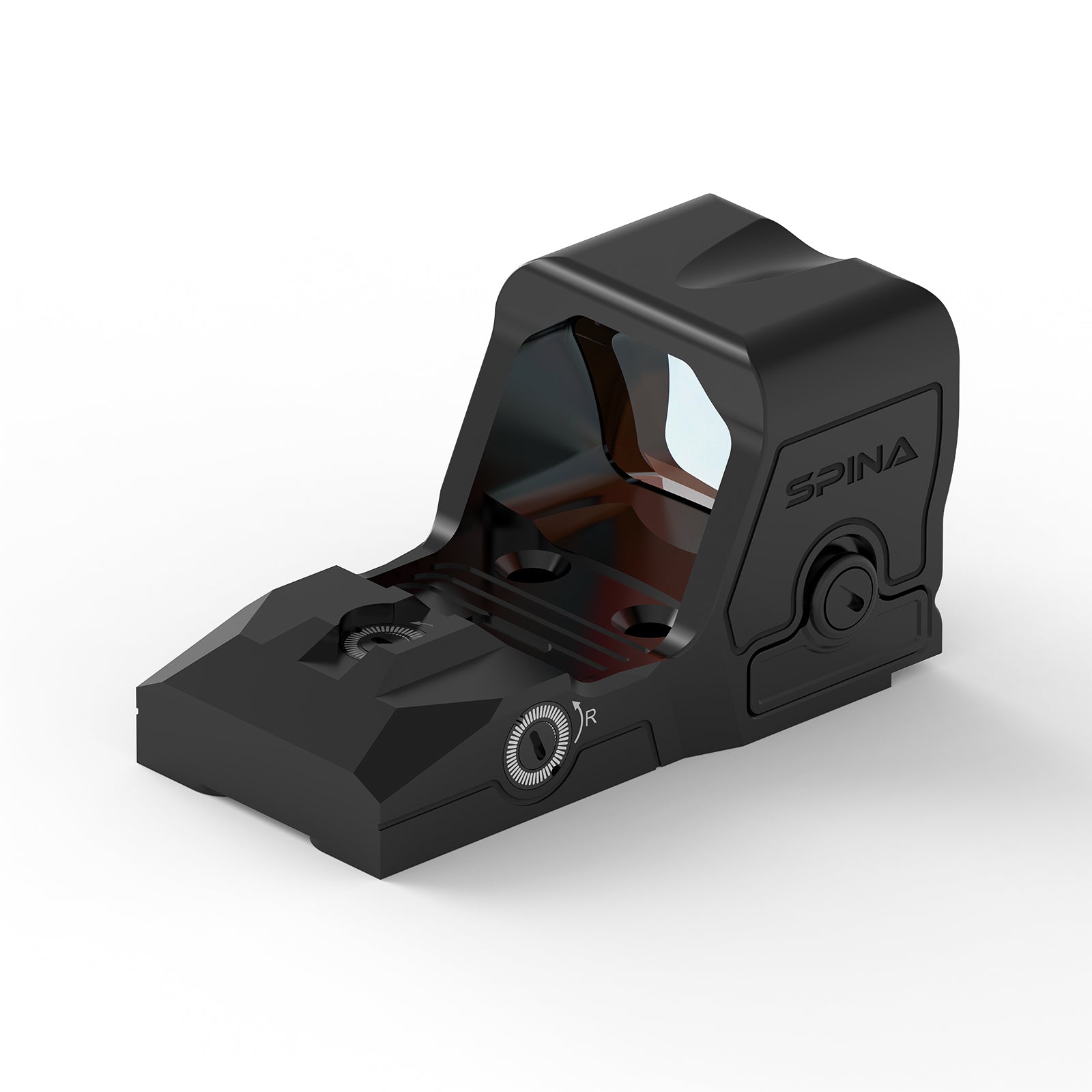

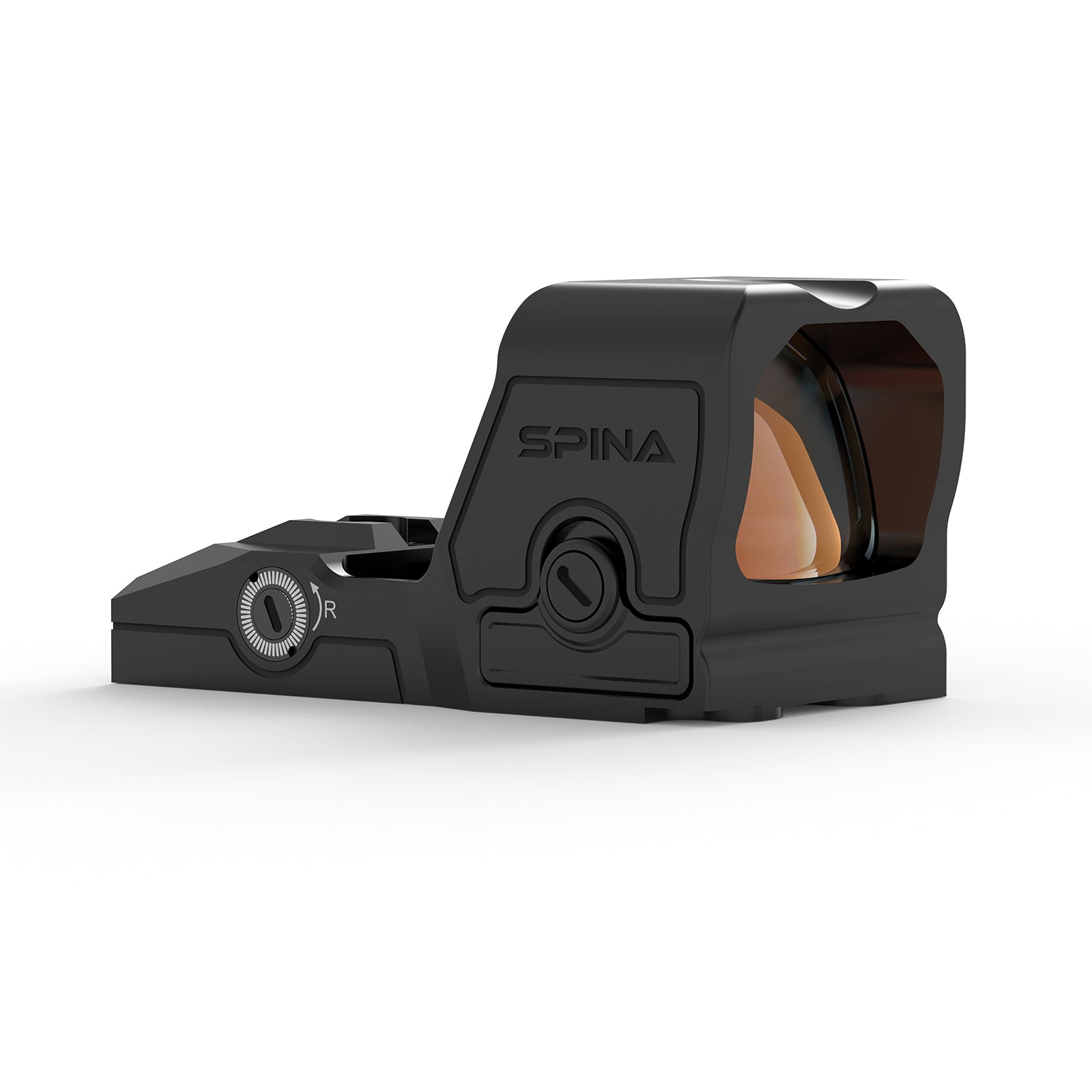

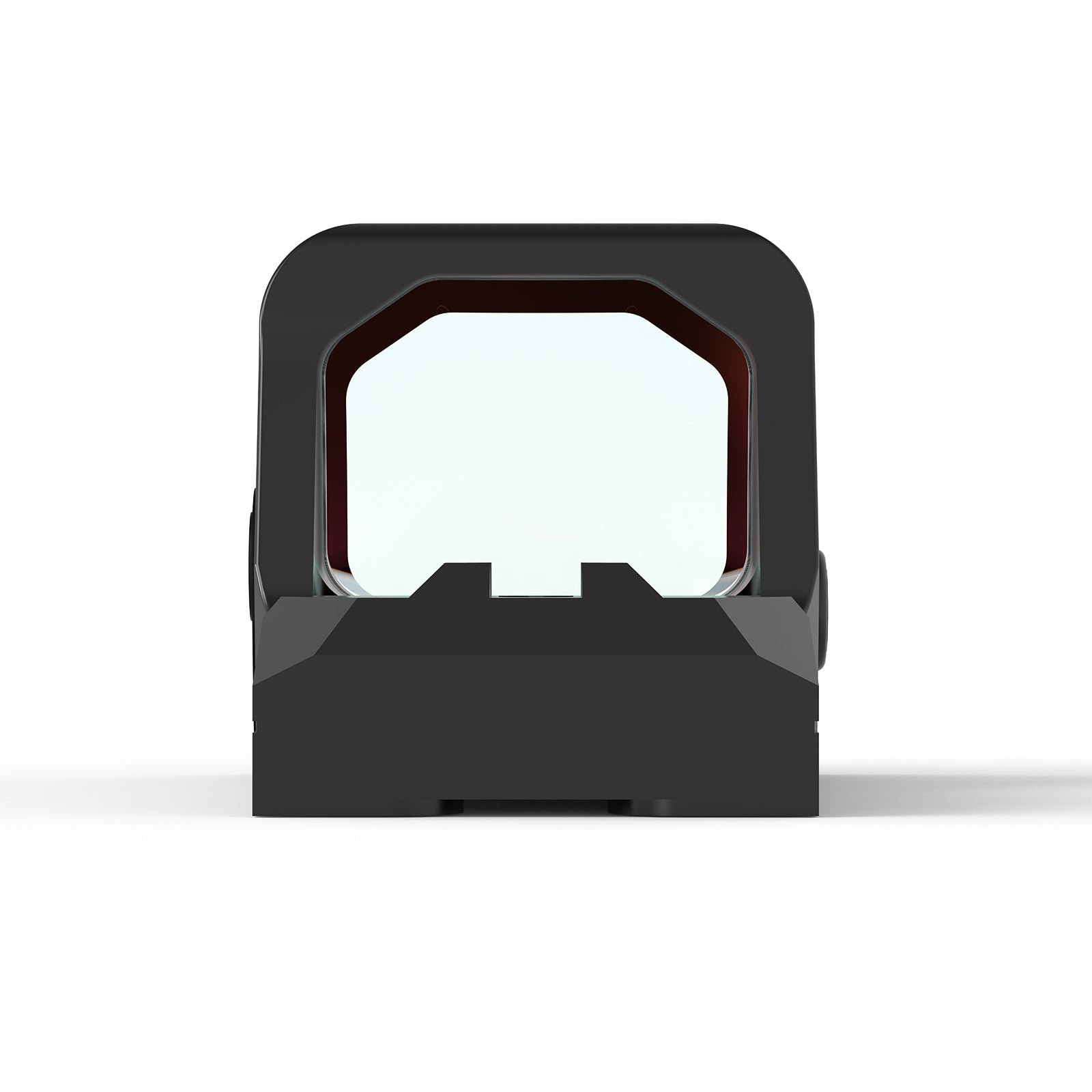

NEX-DR is an open micro reflex red dot in the Spina Optics NEX series, designed for users who prioritize fast target acquisition and lightweight setups.

It features a MOS footprint, allowing direct compatibility with Glock MOS and other popular MOS-cut slides without the need for adapter plates, ensuring simple and reliable installation.

The housing is precision-machined from 6061 aluminum alloy, offering an excellent balance of lightweight construction, strength, and durability—ideal for high-round-count shooting and everyday carry use.

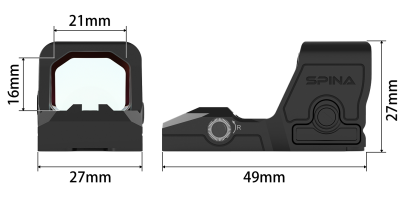

Size

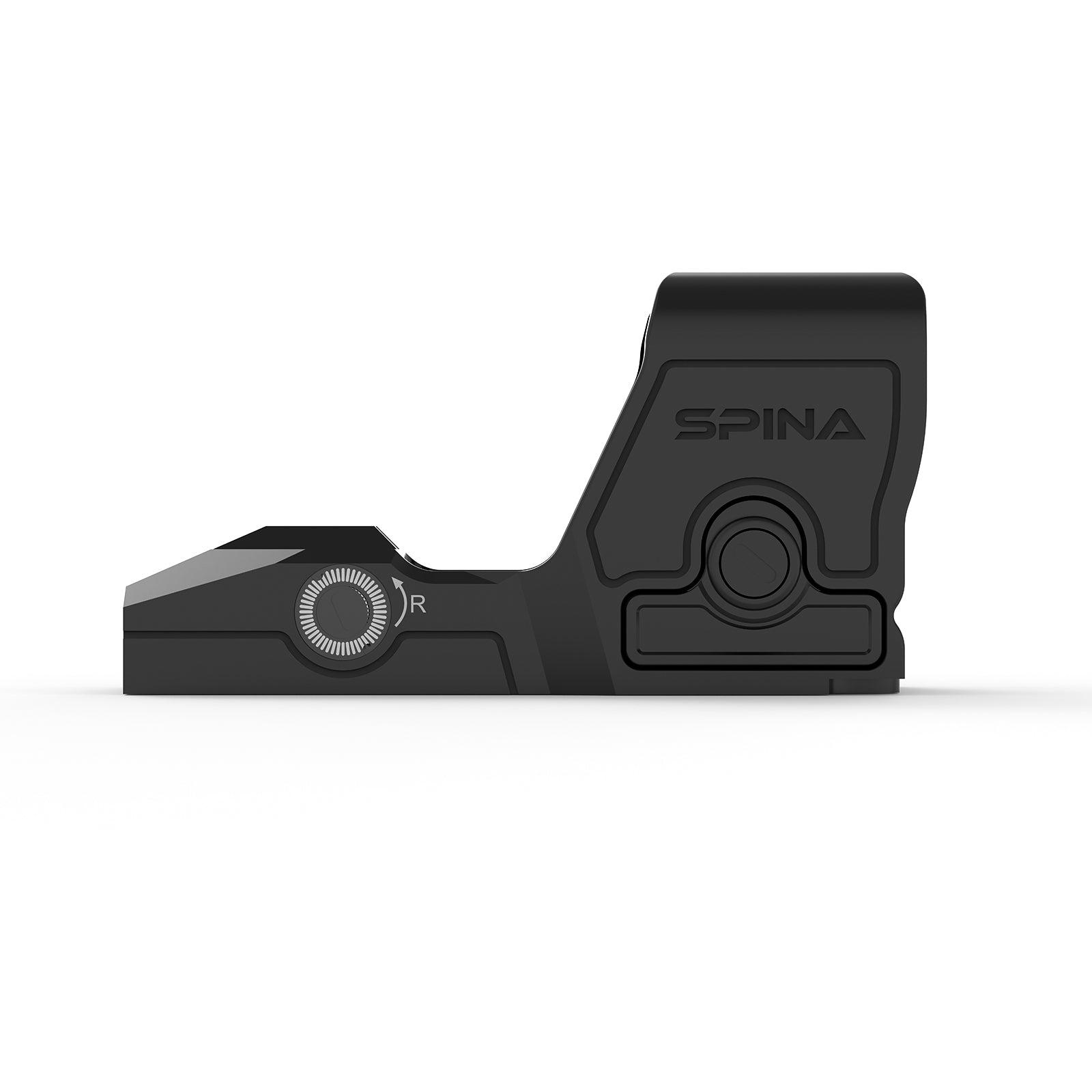

Compact design, easy to carry and use, houses the CR1620 battery in a side-mounted tray for easy replacement when needed.

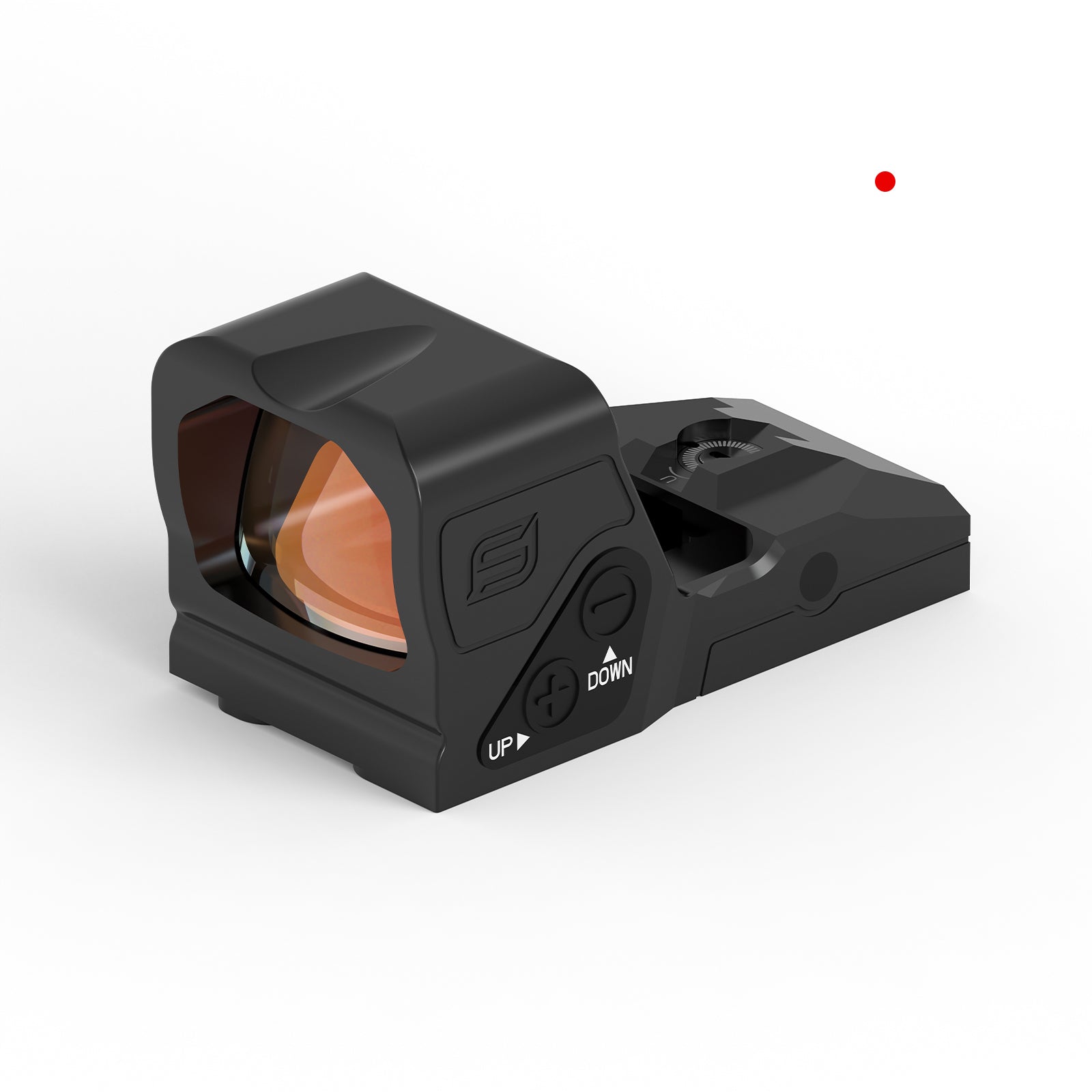

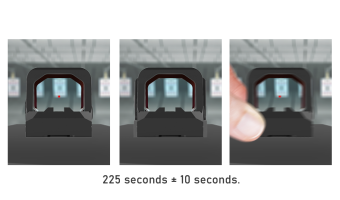

Micro Switch

The red dot sight is equipped with a Micro Switch. If left idle for an extended period (approximately 225 seconds ±10 seconds), the red dot will automatically turn off to save power. Simply press the switch again to instantly reactivate the red dot, ensuring convenient and energy-efficient operation.

Footprint

Uses MOS footprint.

Fully Multi-Coated

This red dot sight is manufactured using optical-quality glass lenses with multilayer coatings applied to facilitate maximum light transmission and wear resistance while reducing glare and facilitating reduced power requirements.

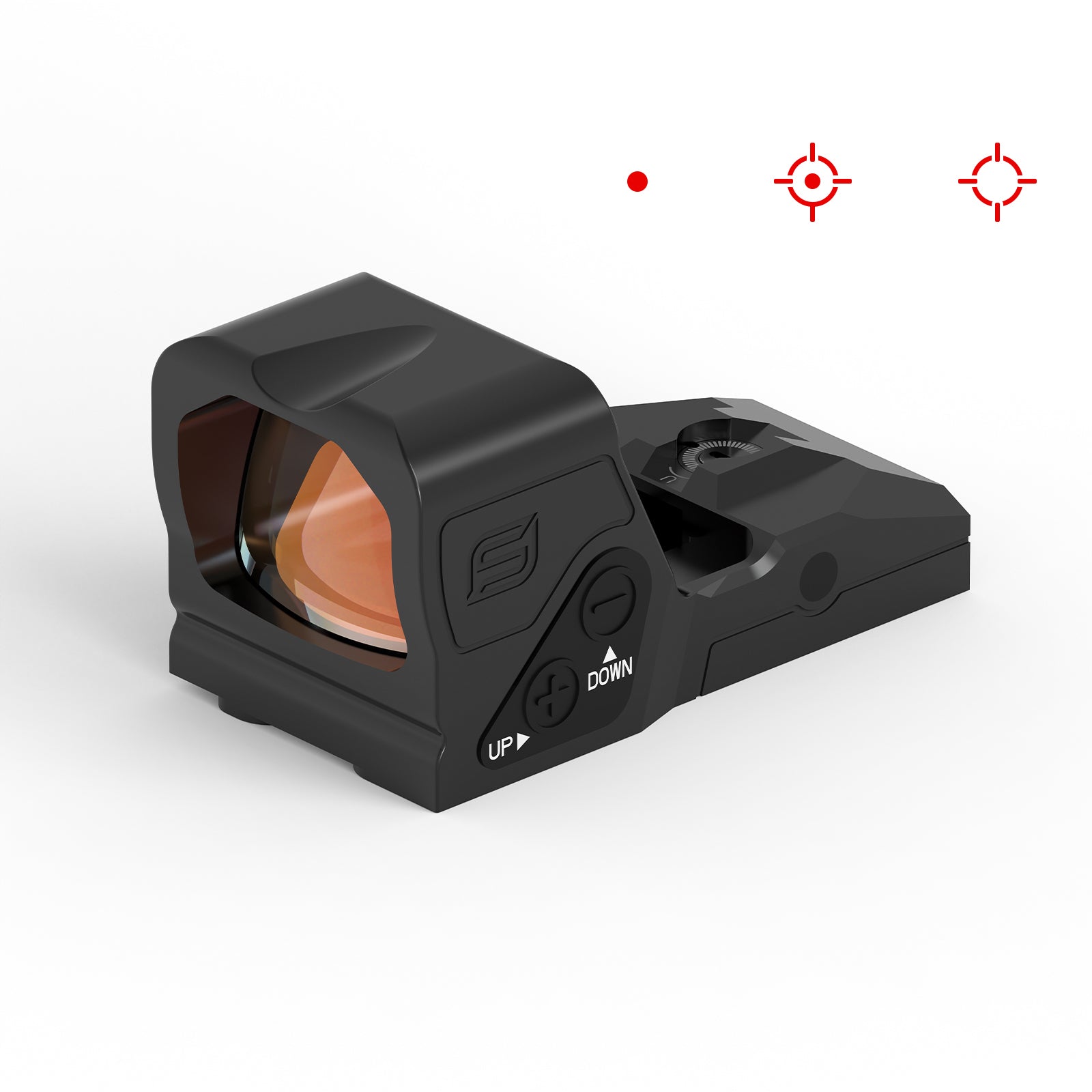

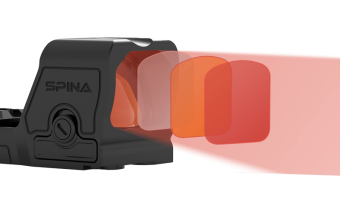

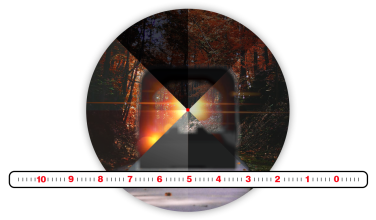

Illumination

10 LEVELS meet your use during the day or night. The clear and bright Reticle does not need to adjust the highest level even of it is sufficient during the day.

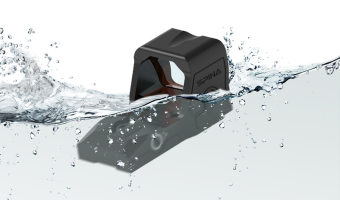

Waterproof

1m, 30min, IP67

Magnification: 0.95~1.05 times
Reflective Lens: Red Film Lens
Aiming Point Size: 3 MOA
Parallax: ≤2 MOA
Objective Lens: Clear Aperture
Parallax Correction: 33 yds
Light Source: Red Light
Impact: 1500G, 200 circle ultimate test; 1500G, 5000 times
Waterproof: 1M, 30 min
Storage Temperature: -20°C ~ +50°C, 2H
Working Temperature: -20°C ~ +50°C, 2H
Adjustment Range: Any Direction ≥ 45 MOA
Electronic Adjustment: 0–10 Gears
Battery: CR1620
Capture Accuracy: 1 MOA ±0.1
Micromove: 225 seconds ±15 seconds
Anti‑fog Test: 0°C, 10 min; +55°C, 1 min, 30 cycles
Material: AL6061
