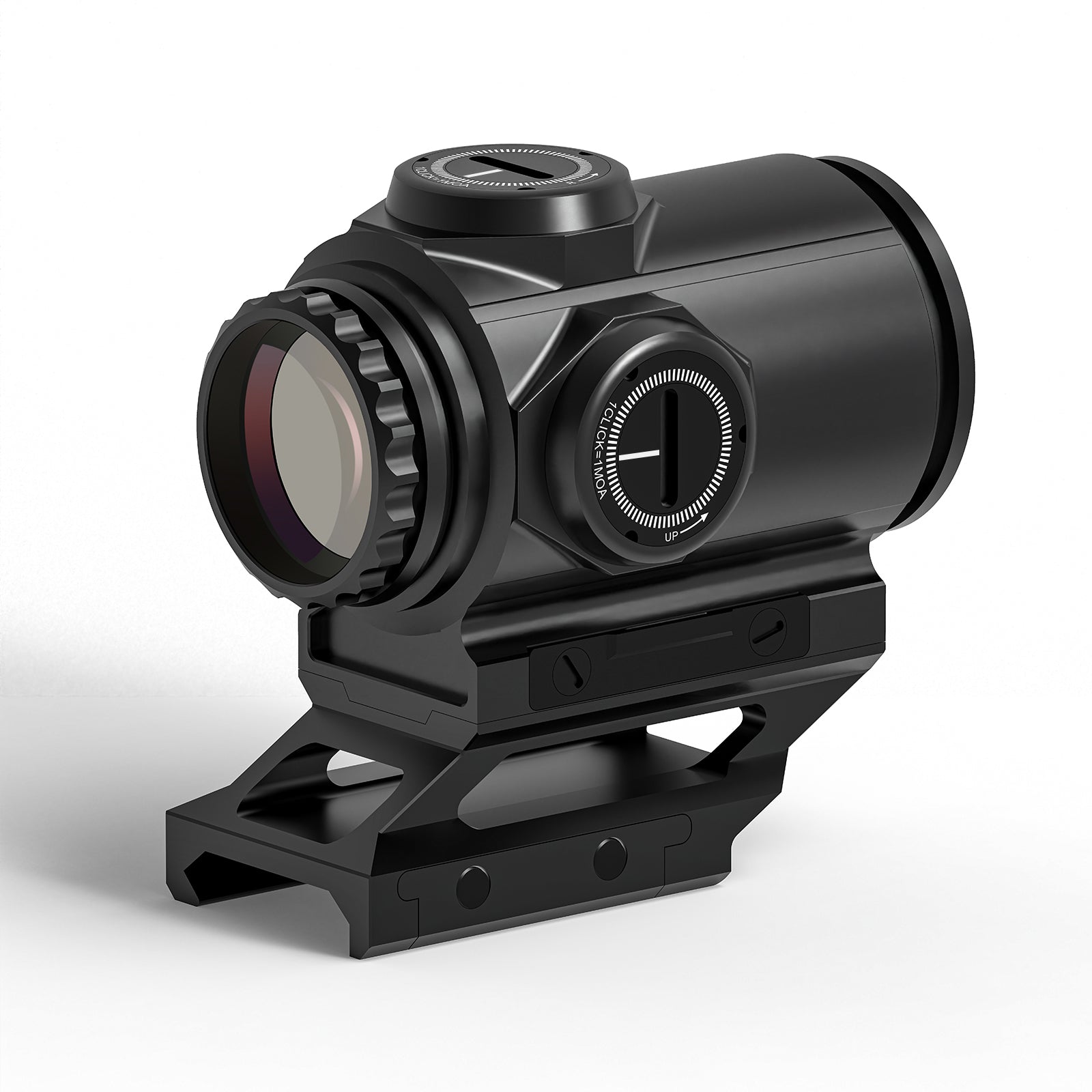

NEX-Z 1X20 Mini Prism Scope - Micromotion, IPX7

Red Light

R 5,300.00

placeholder

NEX-Z 1X20 Mini Prism Scope - Micromotion, IPX7

NEX-Z

RD106R

Micromotion Wake-Up Function
Built-in micromotion technology automatically powers down after 225±15 seconds of inactivity and reactivates with movement, optimizing battery life and readiness.
Precise Adjustment System
Features 80-click adjustment with 1 MOA per click (±0.1 MOA tolerance), minimal backlash (<2 clicks), and clear tactile feedback for zeroing accuracy.
Rugged Shock Resistance
Engineered to endure extreme conditions—tested at 800g/200 cycles and 1500g/5000 cycles—ensuring reliable performance on high-recoil platforms.
Wide Field of View & Eye Relief
Enjoy a 13.5° wide viewing angle with a generous 90mm±3mm eye relief, allowing rapid target acquisition and compatibility with eyewear.
All-Weather Combat Readiness
Fully waterproof (IPX7 rated), anti-fog, and temperature-resistant (-20°C to +50°C), built to perform in the harshest environments.
Smart Brightness Control
Intuitive electronic switch with memory function, 10 brightness levels, and easy control—short press "+" to power on, long press "−" to power off.

R 5,300.00

NEX-Z 1X20 Mini Prism Scope – Micromotion, IPX7

The NEX-Z 1X20 is a mini prism scope—not just fast like a red dot, but sharper, more precise, and built for demanding environments. Featuring a high-definition etched reticle, it delivers crisp, high-contrast imaging even under harsh sunlight or low-light conditions—no emitter glare, no washout. With a wide 13.5° field of view and a comfortable 90mm eye relief, the NEX-Z gives you unmatched spatial awareness and shooting confidence.

Unlike traditional red dots that blur or bounce under stress, the NEX-Z offers a solid, steady, and crystal-clear sight picture that enhances both speed and accuracy. Add micromotion wake-up, IPX7 waterproofing, and rugged recoil resistance, and you have a combat-ready prism scope built for serious shooters.

Size

Compact design, easy to carry and use, houses the CR2032 battery in a side-mounted tray for easy replacement when needed.

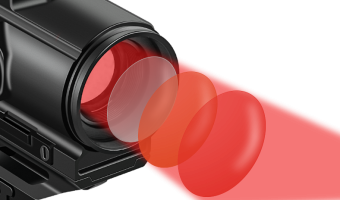

Fully Multi-Coated

This red dot sight is manufactured using optical-quality glass lenses with multilayer coatings applied to facilitate maximum light transmission and wear resistance while reducing glare and facilitating reduced power requirements.

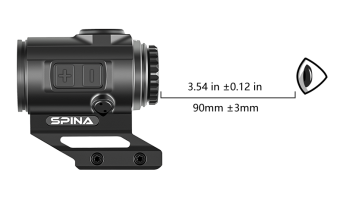

EYE RELIEF

With a generous eye relief of 3.54 inches, the NEX-Z 1X20 Mini Prism Scope offers an incredibly forgiving and comfortable shooting experience—perfect for rapid target acquisition with both eyes open. Whether you’re running drills or on the move, stay locked on target without compromising your shooting stance.

Unaffected by Astigmatism

Prism scopes use a true optical system with etched reticles, making them unaffected by astigmatism. Even without battery power, the reticle remains visible—making them an ideal choice for users with astigmatism.

Waterproof

1m, 30min, IP67

Prism Scope VS Red Dot

Prism-Based optics deliver crisp. Sharp Imagers – Clear reticle enhanced clarity, even in challenging lighting.

Magnification: 1 times
Aim Point Shape: Differentiation Pattern
Exit Pupil Diameter: 15.1 mm ±0.5 mm
Exit Pupil Distance: 90 mm ±3 mm
Resolution: 11.67″ ±5%
Visibility: ±2
Field of View: 13.5°
Parallax Setting: 1.0 MOA in any direction
Luminous Color: Red Light
Adjustment Range: 45 MOA on each side
Adjustment Skew: ≤2 MOA
Snapping Accuracy: 1 MOA ±0.1
Adjustment Direction: Counterclockwise
Adjusting Teeth: 80 Teeth
Adjust Empty Return: <2 Clicks
Differentiation Tilt: <1°
Differentiation Accuracy: ≤3%
Battery: CR2032
Micromotion Function: 225 seconds ±15 seconds
Switch Category: Electronic Switch
Impact Test: 800G / 200 times
Ultimate Impact Test: 1500G / 5000 times
Waterproof Test: 1M, 30 min
Storage Temperature: -20°C ~ +50°C for 2 hours
Operating Temperature: -20°C ~ +50°C for 2 hours
Anti‑Fog Test: 0°C, 10 min; +55°C, 1 min, 30 seconds fog dispersion
